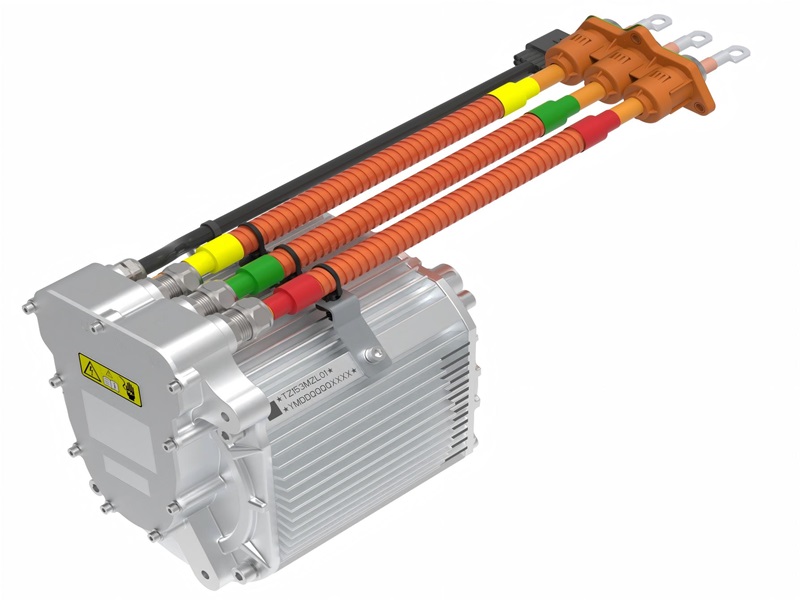

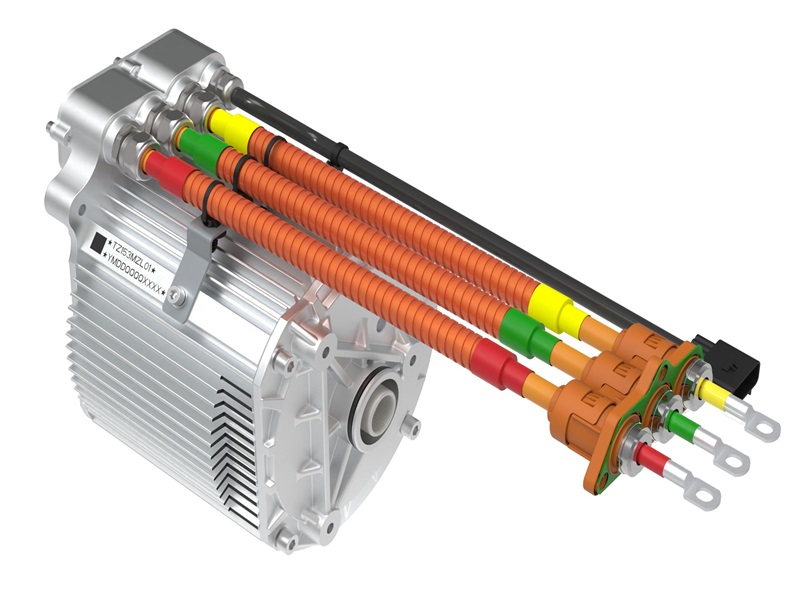

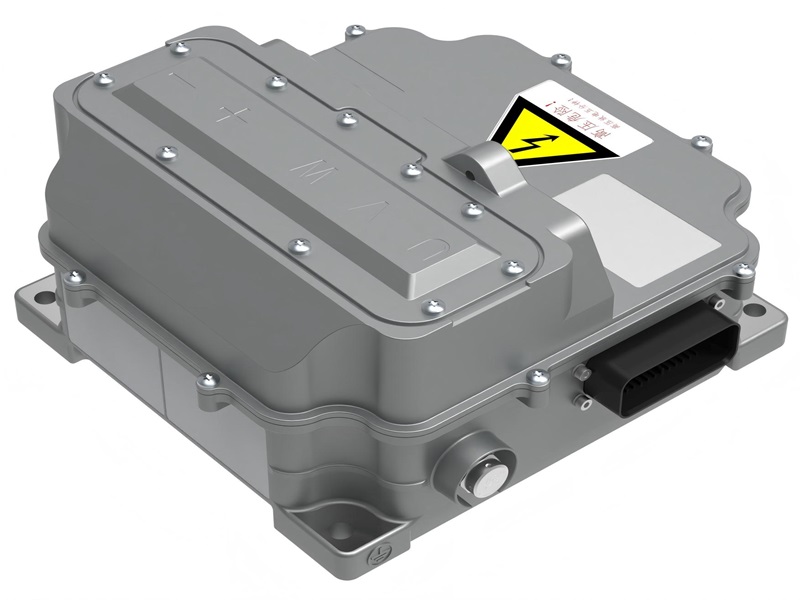

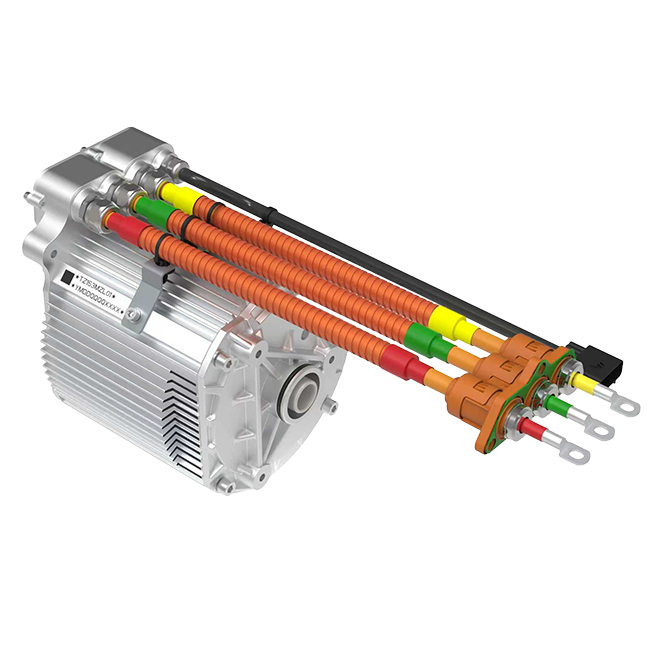

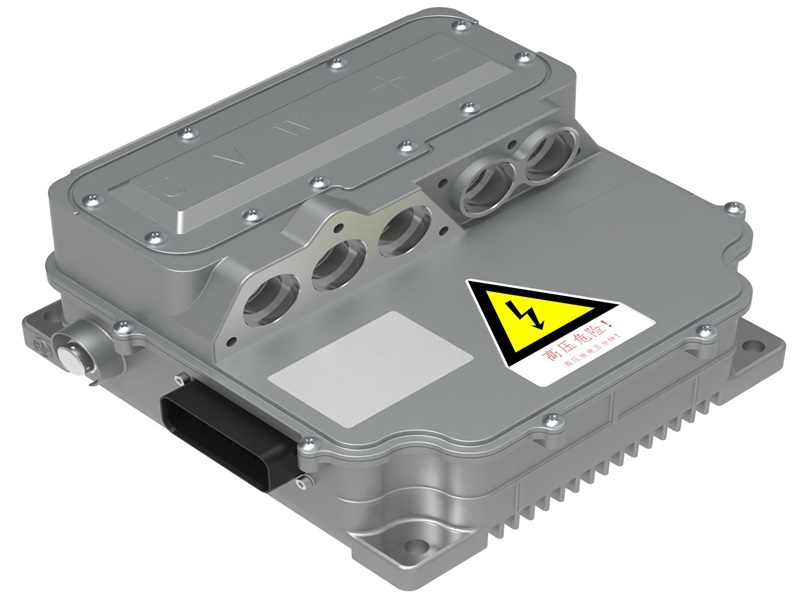

96V Mini Car Pure Electric Platform Hairpin Motor and Controller
Multi-scenario platform applications, such as electric micro-vans and low-speed transportation vehicles suitable for low-speed new energy vehicles, mid-to-high-end freight tricycles and electric motorcycles, special operation vehicles' factory/park shuttle buses and low-speed unmanned delivery vehicles, as well as electric forklifts and loaders for small engineering equipment.
Item No :
001Payment :
Prepayment requiredProduct Origin :
Xiamen City,Fujian Province ,ChinaColor :
Silver whiteWeight :
Motor：19.6Kg ， Motor controller：4.2kgPerformance Specs:
(1) Structural efficiency advantage
By using permanent magnet synchronous flat-wire motor, compared with traditional round-wire motor, the flat-wire winding can increase the slot occupancy rate, thereby improving the motor efficiency and continuous output capacity.
(2) Power performance and power density
Flexible power configuration
High power density
(3) Reliability and adaptability
Protection grade IP67, with excellent dustproof and waterproof performance, can adapt to complex working conditions.
Using ABZ encoder, precisely control the motor speed and position, ensuring the accuracy of power output.
(4) Functional features
The electronic control system supports VCU function, UDS diagnosis, and OTA remote upgrade. Users can select torque/velocity mode and real-time event recording, and possess complete protection functions such as fault protection, safety protection, and active damping.
(5) System integration CAN communication, built-in safety functions, and data logging for commissioning and field service.
Supports CAN communication, has built-in safety functions, and provides data recording necessary for debugging and on-site services
| Serial number | Project | Describe | Remark |
| 1 | Motor type | Permanent magnet synchronous motor | Flat wire |
| 2 | Working voltage range | 60-108Vdc | / |
| 3 | Rated voltage | 96Vdc | / |
| 4 | Cooling method | Natural air cooling | Requires windward assembly |
| 5 | Rated/peak power |
6 kW/12kW or 7.5kW/15kW |
Compatible 10kW/23kW |

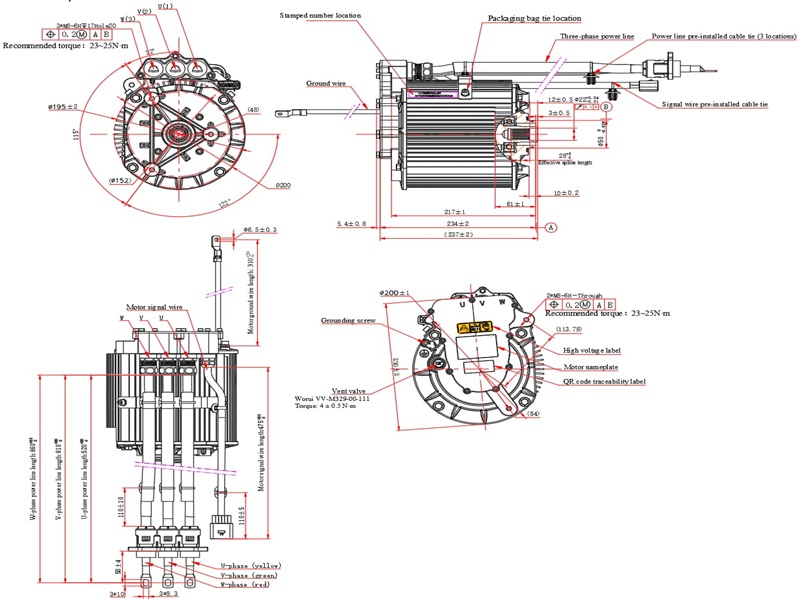

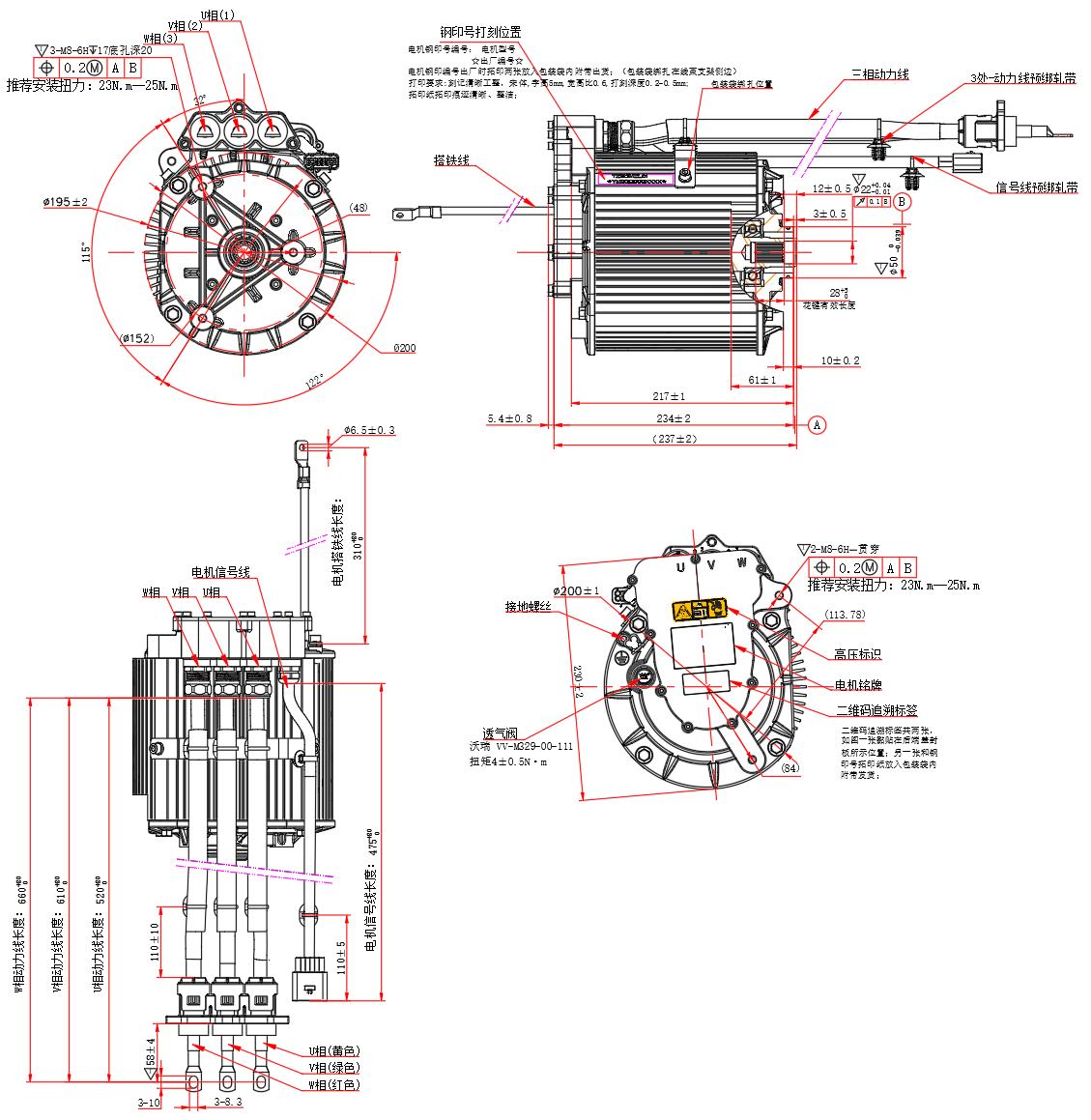

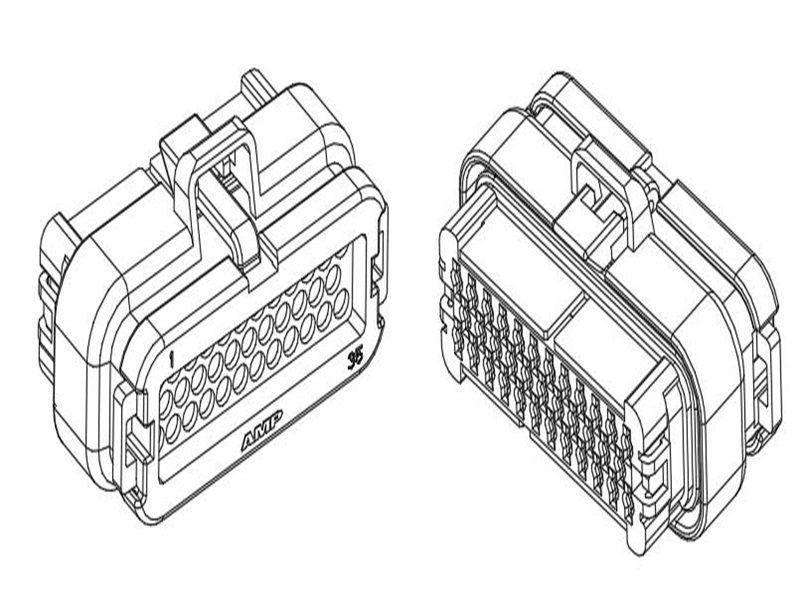

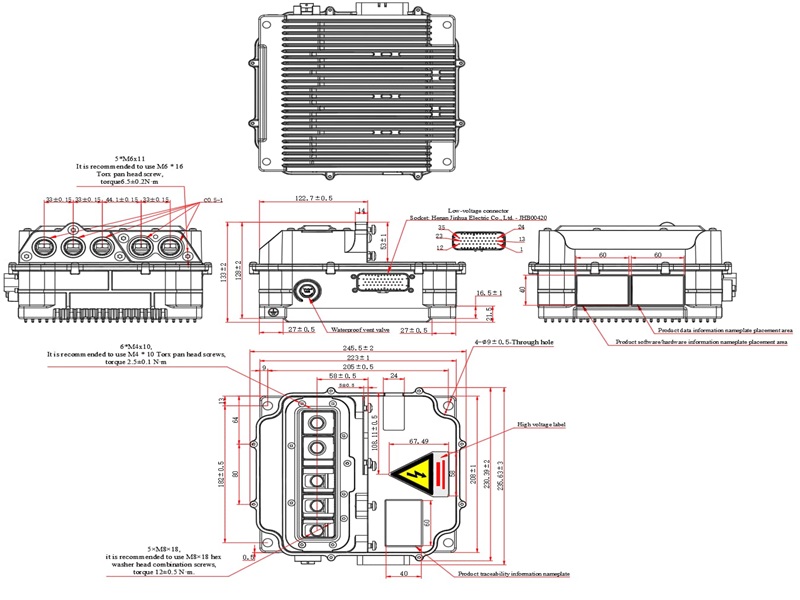

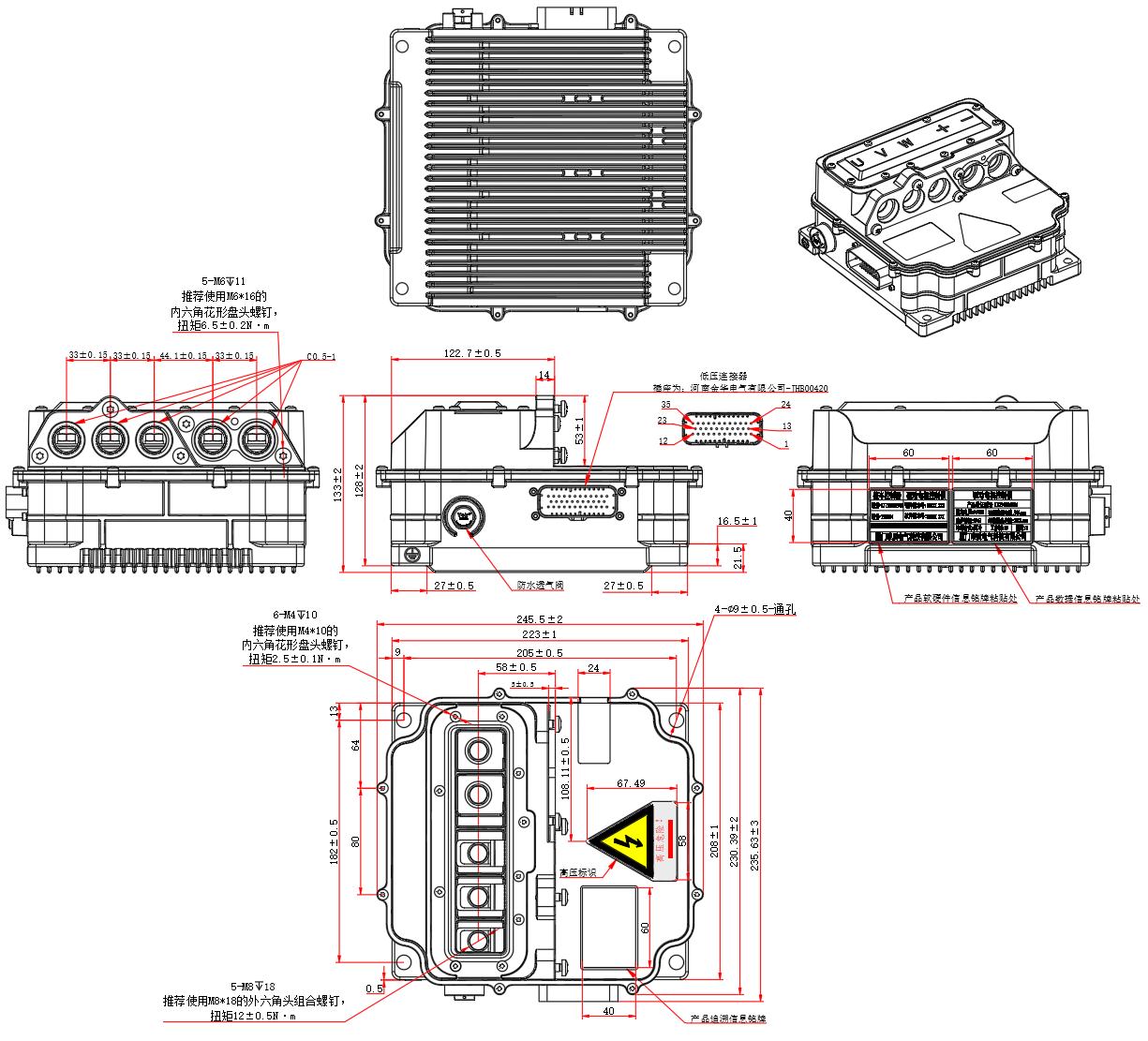

| 6 | Rated/peak torque | 18Nm/65Nm | Compatible 28Nm/95Nm |
| 7 | Rated/peak speed | 3500/7500rpm | / |
| 8 | Encoder type | Z ABEncoder | / |
| 9 | Reverse electromotive force amplitude | 19V@1000rpm | / |
| 10 | Motor Size | 195*230*237mm | / |
| 11 | VCU function | Driving mode and logic for recognizing vehicle speed calculation, etc. | Support |
| 12 | Protection function | Fault protection, safety protection, active damping, etc. | Support |
| 13 | Diagnosis method | UDS Diagnosis | Support |
| 14 | Upgrade method | OTA Remote Upgrade | Support |
| 15 | Wake-up method | hardwired wake-up and sleep mode | / |
| 16 | Protection level | IP67 | / |
| 17 | Control communication methods | CAN2.0 | / |
| 18 | System low-pressure control power supply | 12V | / |
| 19 | Motor controller size | 235.6 *245.5*133mm | / |

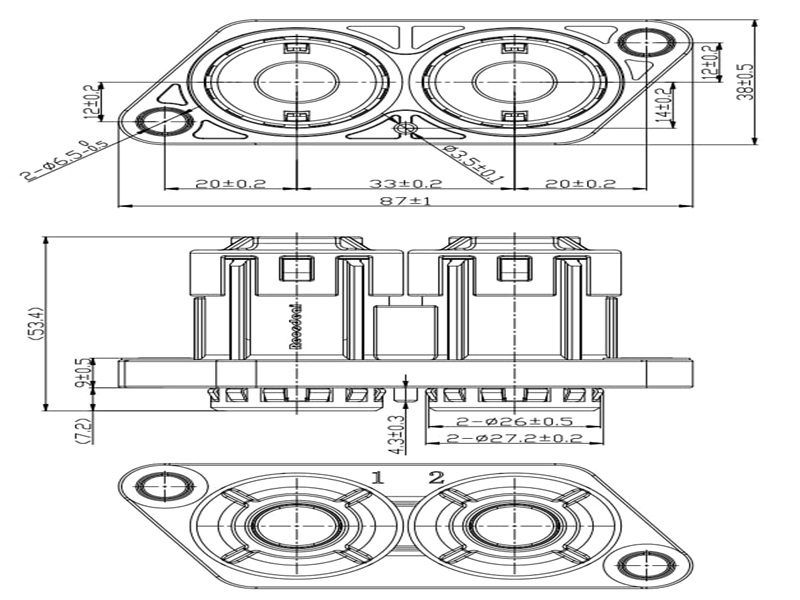

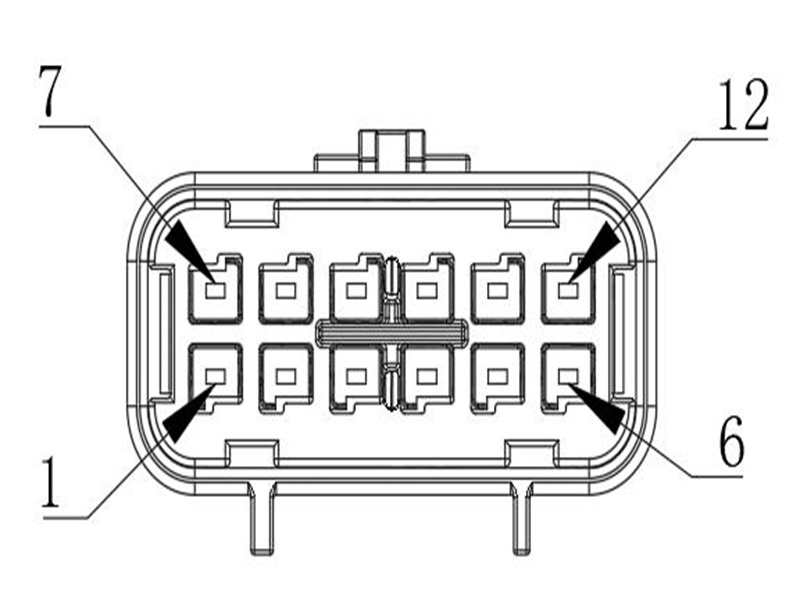

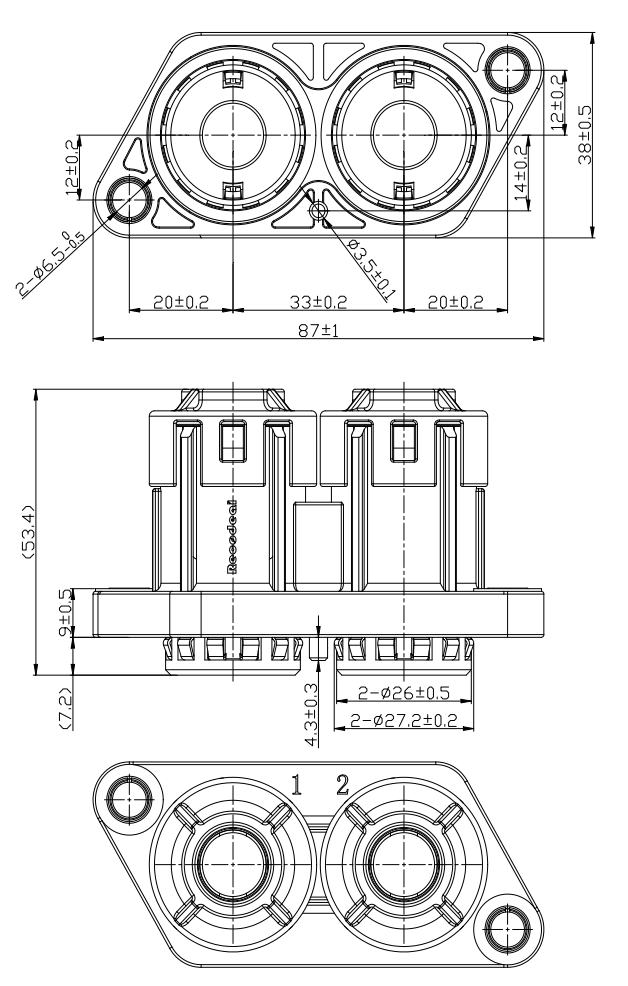

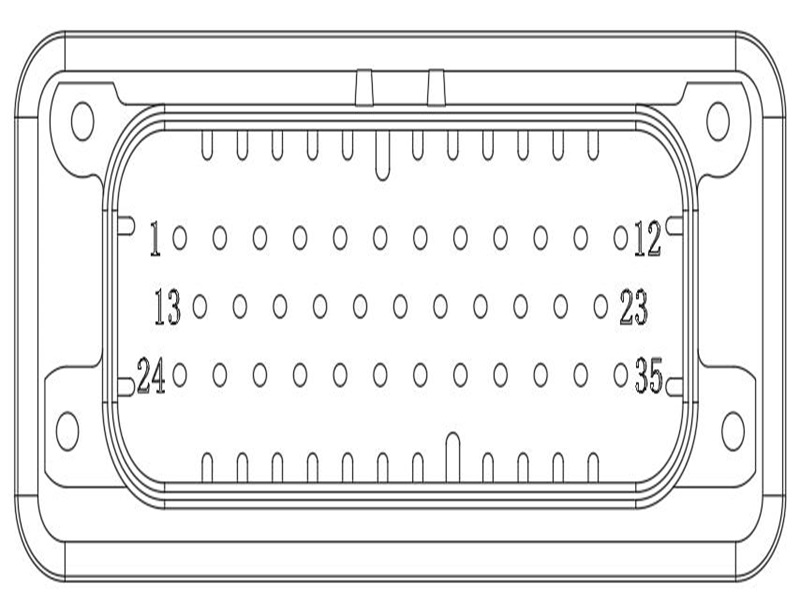

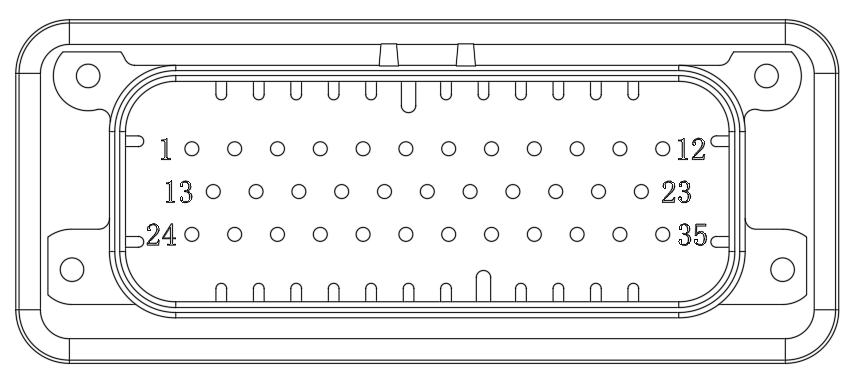

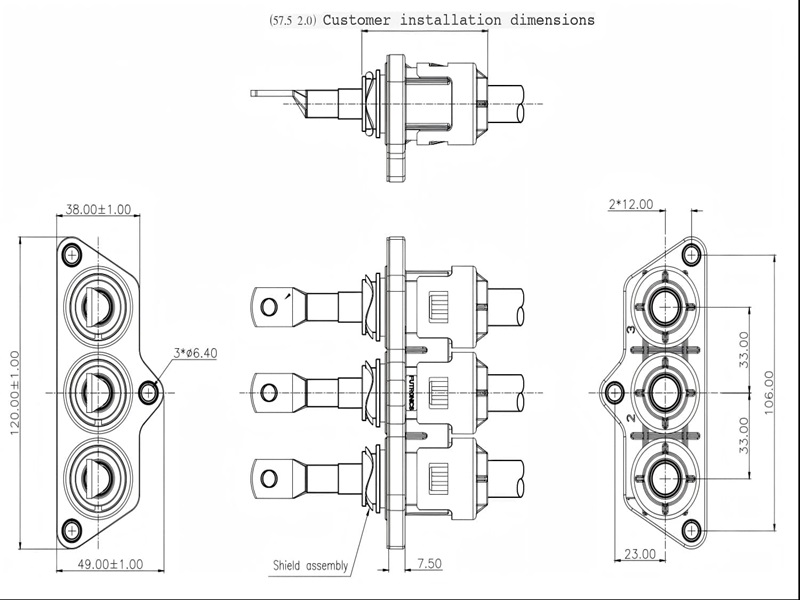

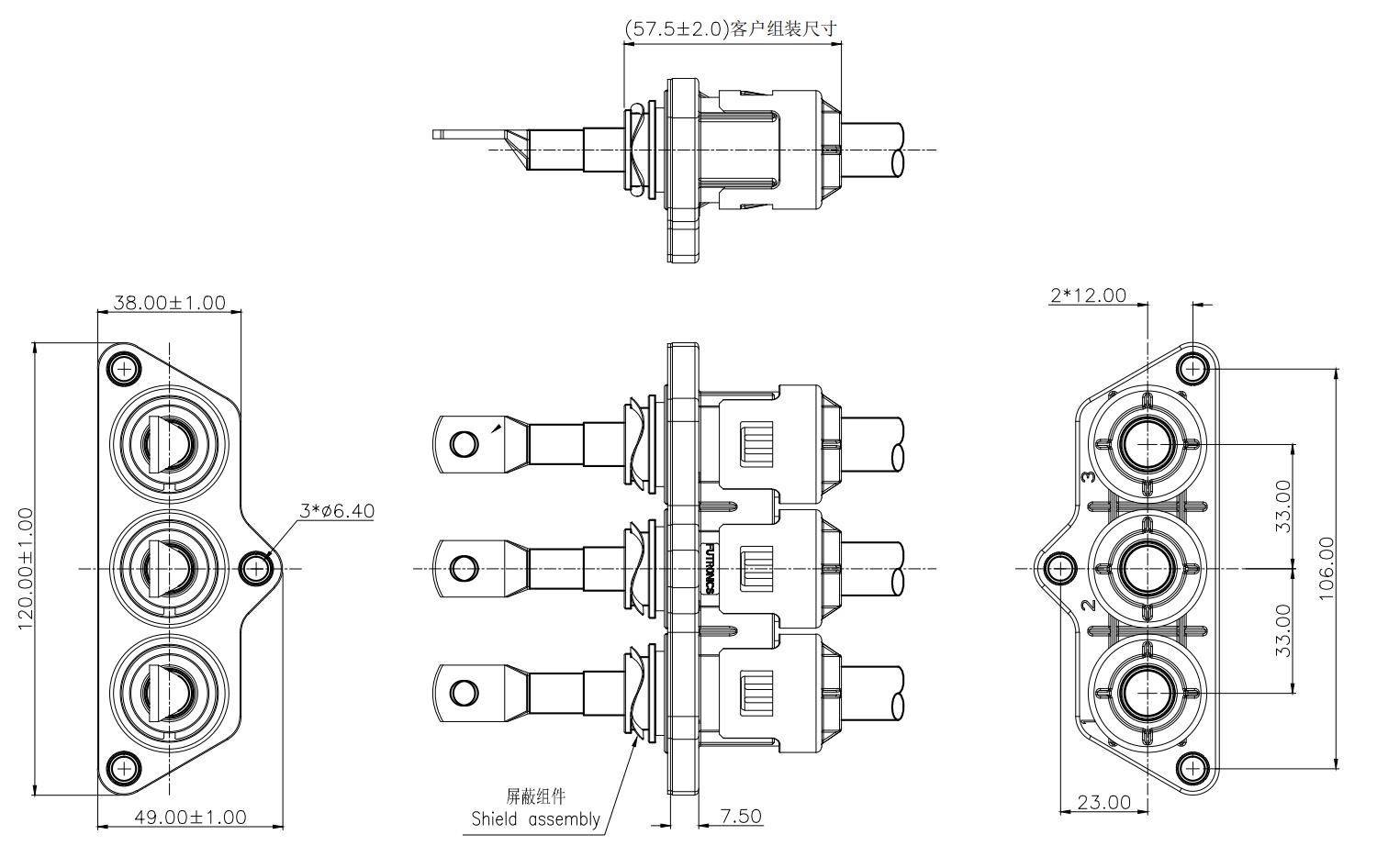

Integration Notes：
(1) Cooling circuit: The motor and inverter are assembled in a ventilated/ventilated position.
(2) EMI & wiring: Use shielded high-voltage cables, ensure correct grounding, and follow the recommended cable routing.
(3) CAN setup: Match the bitrate, IDs, and scaling; log startup/commissioning data for baselines.
CAN settings: Match bit rate, ID and scale; Record startup/debug data to establish a baseline.
